Introduction

Welcome to a new post! Today I’m diving into a topic I’ve discussed with countless colleagues in the Azure Virtual Desktop (AVD) community: Nerdio Scripted Actions, and in particular Windows Scripts. When I chat with fellow IT pros about how they handle AVD deployments, some lean on a variation of AVD Accelerator, others use tools like Nerdio or Hydra, and many stick with native deployment and management.

Personally, I avoid debates about which option is “best”, since each has its own niche and use cases. What I can say with confidence is that the projects where I’ve used Nerdio have been incredibly easy to adapt for clients, thanks to its simplicity. One feature that both I and my clients rely on heavily is Scripted Actions, specifically Windows Scripts, which let you automate repetitive tasks in a very straightforward way.

As more scenarios emerge that require AVD without a traditional Active Directory, using scripts to configure session hosts before they even boot up is on the rise, since applying those settings via Intune can take time. With that in mind, I created the GitHub repository “nerdio-scripted-actions,” where I’ll be hosting most of the scripts I develop. More on that later!

How Scripted Actions Work

Scripted Actions in Nerdio Manager are PowerShell scripts that run either on Windows VMs (Windows Scripts) or as Azure Runbooks. They let you customize and automate tasks, like installing software, configuring settings, or performing maintenance, at various points in the VM lifecycle.

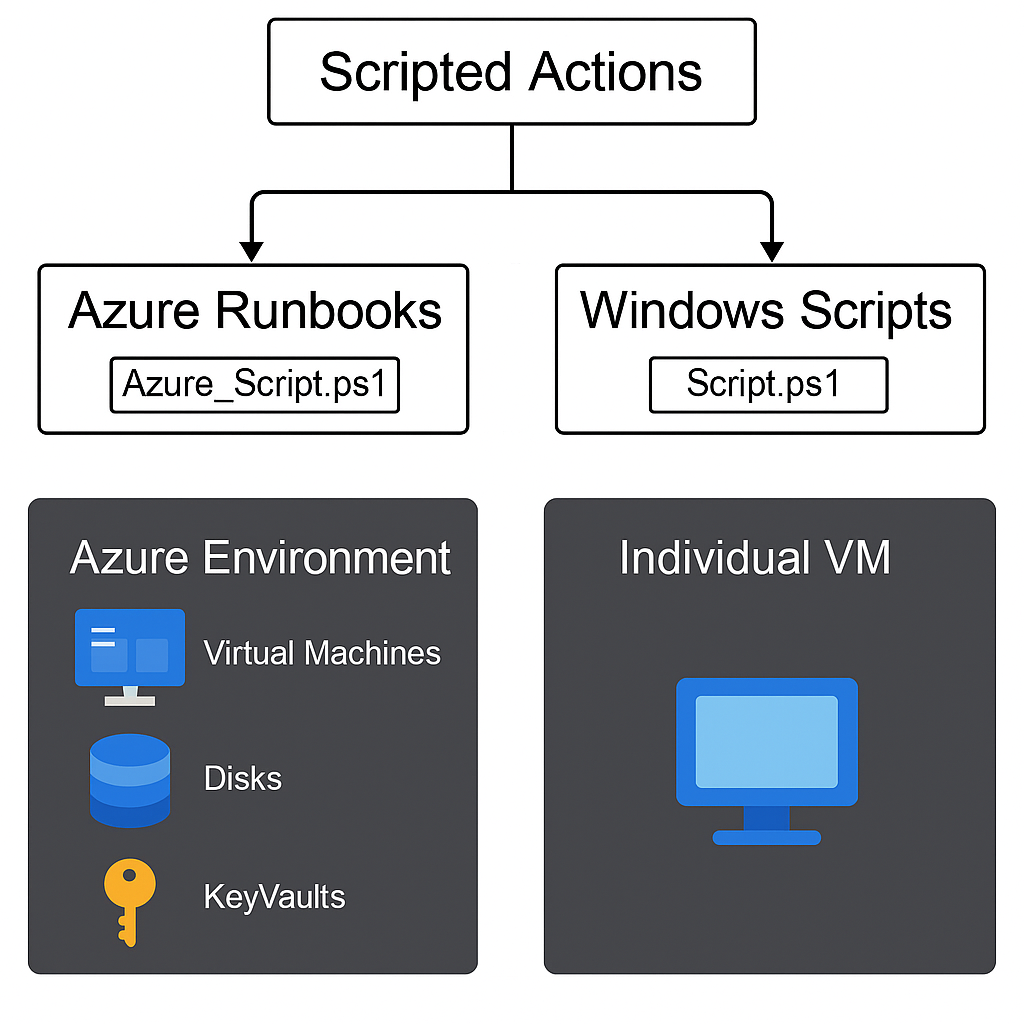

Nerdio Scripted Actions

Azure Runbooks in Nerdio

Azure Runbooks run your PowerShell scripts outside of a VM, leveraging Azure Automation. This is great for tasks that don’t require logging into each machine:

  • Add data disks to VMs
  • Assign or unassign users to personal desktops
  • Change OS disk type of stopped VMs
  • Shrink FSLogix profiles
  • Enable hibernation or OS disk encryption
  • Set regional settings
  • Create NAT Gateways
  • Power on VMs for a specific window
  • Update Nerdio Manager or the AVD Agent

Windows Scripts in Nerdio

Windows Scripts run inside the VM via the Custom Script Extension. They’re perfect for installing apps, tweaking settings, or running any PowerShell code with admin rights, without interrupting user sessions.

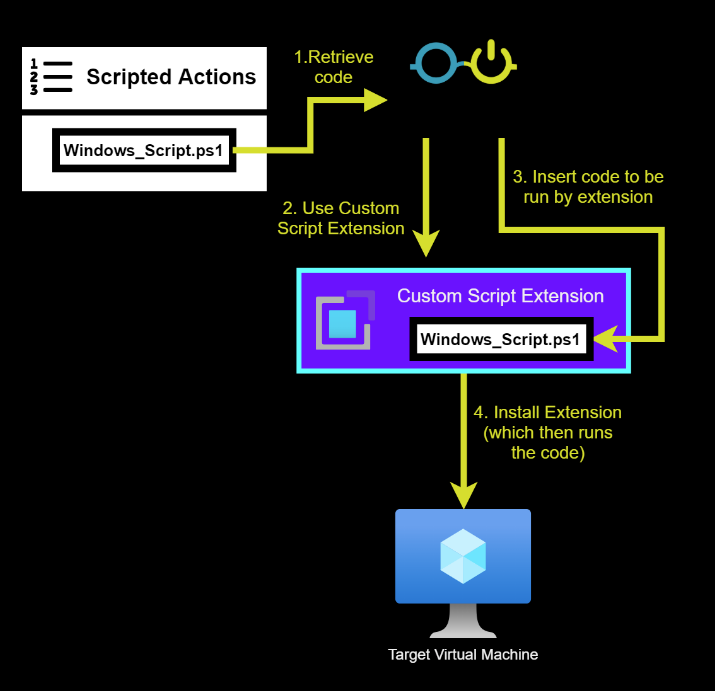

Nerdio Scripted Actions Windows Scripts

Out of the box, Nerdio provides many ready-to-use scripts, such as:

  • Installing popular apps via Chocolatey (Chrome, 7zip, VSCode, Adobe Reader…)
  • Installing Microsoft 365, Teams, OneDrive
  • Enabling clipboard transfer or screen-capture protection
  • Applying Windows or AVD performance optimizations
  • Installing FSLogix or security agents (e.g., Sophos)
  • Granting local admin rights to users
  • Running Windows 10/11 updates
  • Restarting the AVD Agent or adjusting Sysprep settings

Where Can Scripted Actions Be Used?

Scripted Actions in Nerdio Manager can be applied at various stages of the VM lifecycle:

  1. Desktop Images (Golden Images)
    • Purpose: Customize and prepare your base images.
    • Use Cases: Install or update applications, apply system optimizations, configure settings before sealing the image.
    • Application: During the “Set as image” process, you can run scripts on the source VM or the clone VM.
    • Reference: Update a Desktop Image and Hosts
  2. Host Pool VM Lifecycle Events
    • Purpose: Automate tasks during VM provisioning and management.
    • Use Cases: Execute scripts when a VM is created, started, stopped, or deleted; install agents or configure settings during VM deployment.
    • Application: Assign scripts to specific VM lifecycle events within a host pool.
    • Reference: Overview of Scripted Actions
  3. Re-imaging Hosts
    • Purpose: Apply updates or changes across existing session hosts.
    • Use Cases: Re-apply configurations or software installations; ensure consistency across all hosts after updating the base image.
    • Application: During the re-image process, scripts can execute to apply necessary changes.
    • Reference: Update a Desktop Image and Hosts
  4. Manual Execution on Host Pools
    • Purpose: Perform ad-hoc tasks across multiple VMs.
    • Use Cases: Run maintenance scripts; apply quick fixes or updates without full redeployment.
    • Application: Use the “Run script” option within a host pool to execute scripts on selected VMs.
    • Reference: Overview of Scripted Actions
  5. Scheduled Tasks

Scripted Action Groups in Nerdio Manager

Scripted Action Groups let you combine multiple scripted actions (Windows Scripts or Azure Runbooks) into one reusable group. These groups simplify automation by allowing a set of scripts to execute in sequence during tasks like VM provisioning or image updates.

Key Features

  • Sequential Execution
    Scripts within a group run one after another in the defined order, you can rearrange them with drag & drop.

  • Reusability
    Apply the same group to multiple scenarios to reduce manual effort and ensure consistency.

  • Tag Support
    Assign tags to groups for better organization and filtering.

Limitations

  • Maximum of 20 Scripts per Group
  • No Nesting: You cannot include one group inside another.
  • Flat Execution: The system treats each script individually; order matters.

My Scripted Actions Repository

To help you get started with Nerdio Scripted Actions, I’ve curated a dedicated GitHub repo at nerdio-scripted-actions. Inside, you’ll find a growing collection of PowerShell scripts designed for everything from image customization to day-to-day host-pool tasks.

Nerdio maintains its own library under NMW Scripted Actions, many of which are drawn from Microsoft’s RDS-Templates project. To illustrate, here are two complementary scripts:

The Nerdio script begins with a standardized header that defines metadata and user-input variables. For example:

<#
  Author: Akash Chawla
  Source: https://github.com/Azure/RDS-Templates/tree/master/CustomImageTemplateScripts/CustomImageTemplateScripts_2024-03-27
#>

#description: Install language packs
#execution mode: Individual
#tags: Microsoft, Custom Image Template Scripts
<#variables:
{
  "LanguageList": {
    "Description": "Select any additional languages to be added",
    "DisplayName": "Languages"
  }
}
#>

In the variables section, you define the fields that end users will interact with, here, a simple language picker:

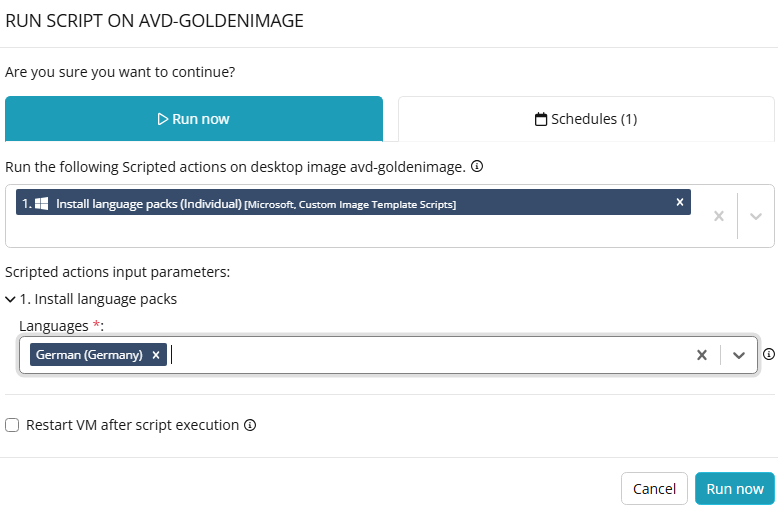

Nerdio Scripted Actions Variables

By hosting these scripts in your own repo, you gain full control over versioning, customizations and integration with Nerdio’s “Script repositories” feature, making your AVD automation both transparent and repeatable.

Integrating the Repository in Nerdio

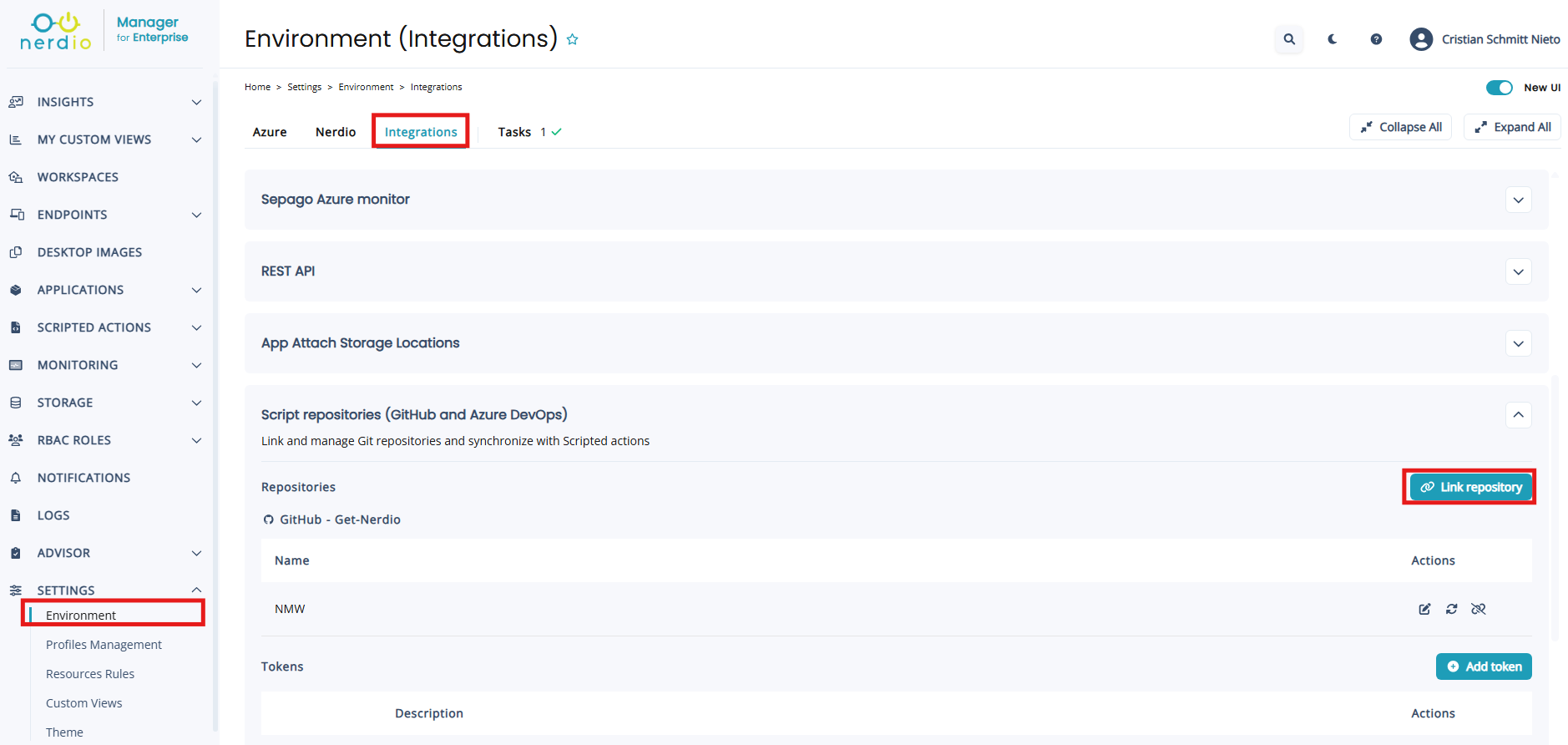

  1. Go to Settings > Environment > Integrations > Script repositories:

    Adding a custom repository to Scripted Actions 01

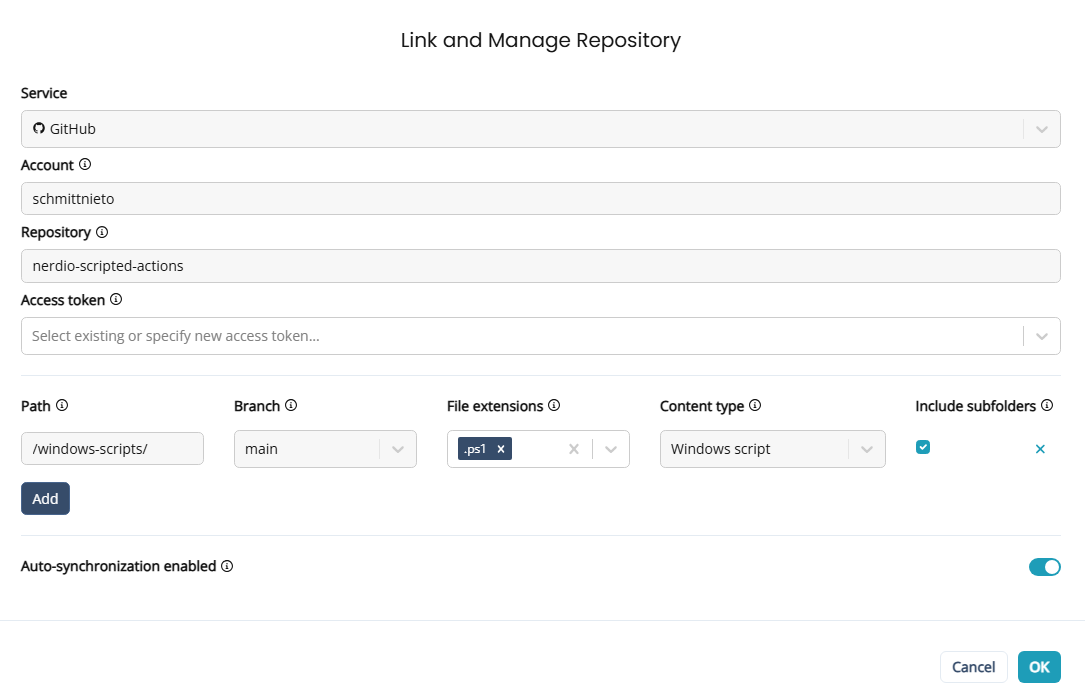

  2. Add the repository URL and select folders to sync:

    Adding a custom repository to Scripted Actions 02

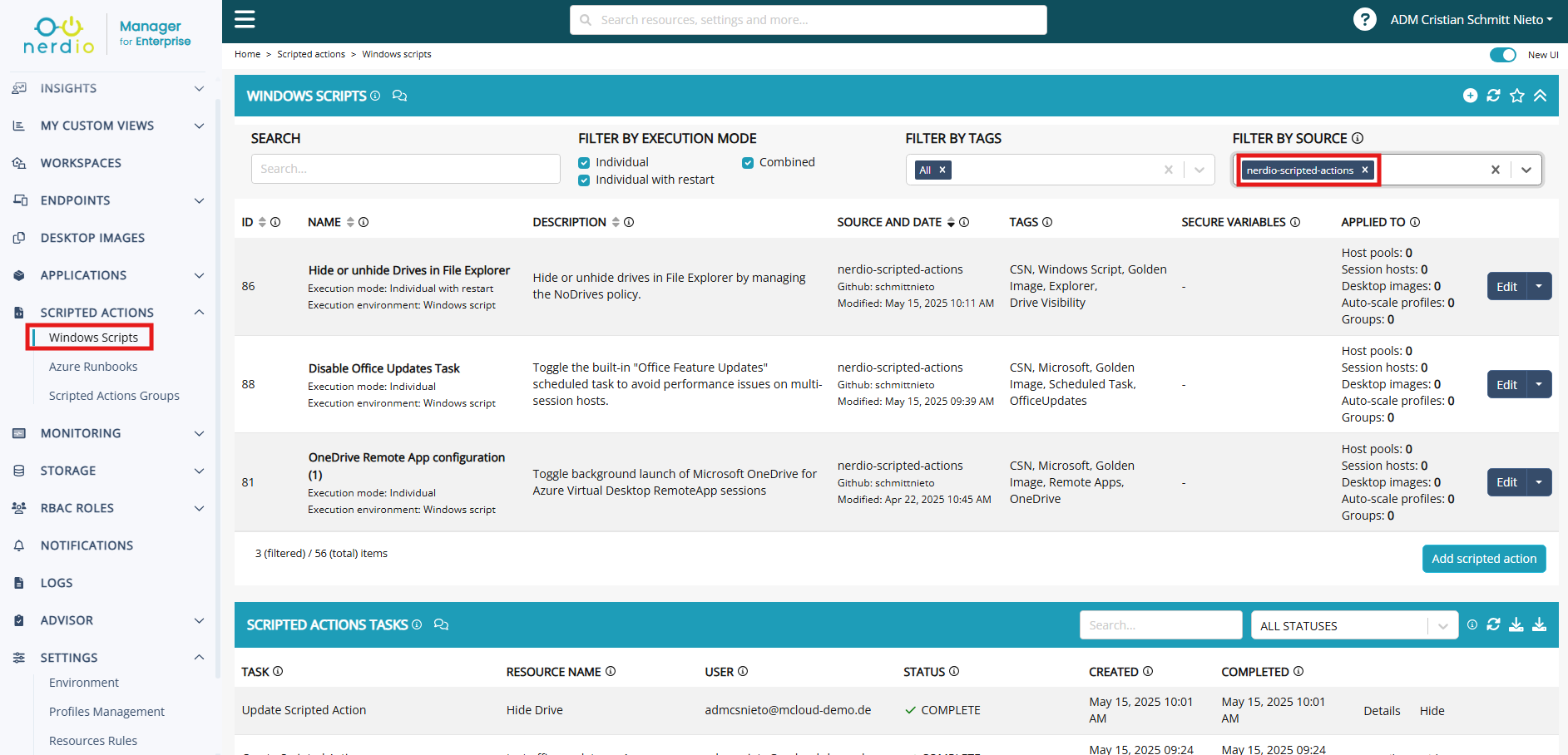

  3. Verify the scripts under Scripted Actions > Windows Scripts > Filter By Source:

    Adding a custom repository to Scripted Actions 03

My Scripts

Currently, the repository shows three scripts, with three more in development. Here’s what you’ll find today:

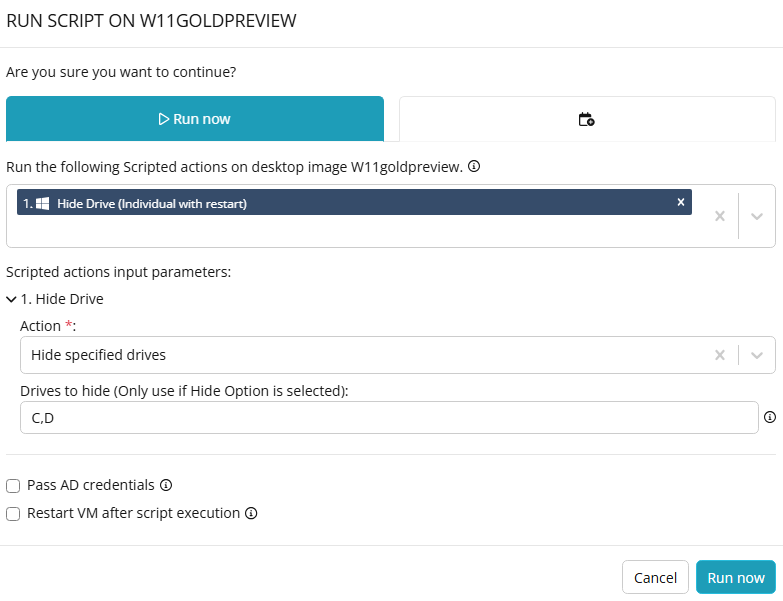

  • Hide or Unhide Drives in File Explorer
    Hide one or more drives (e.g., “C,D,E”) from File Explorer to simplify the UI. Users can still access them, it just cleans up the view. You can also revert the change without re-entering drive letters. Hide or Unhide Drives in File Explorer

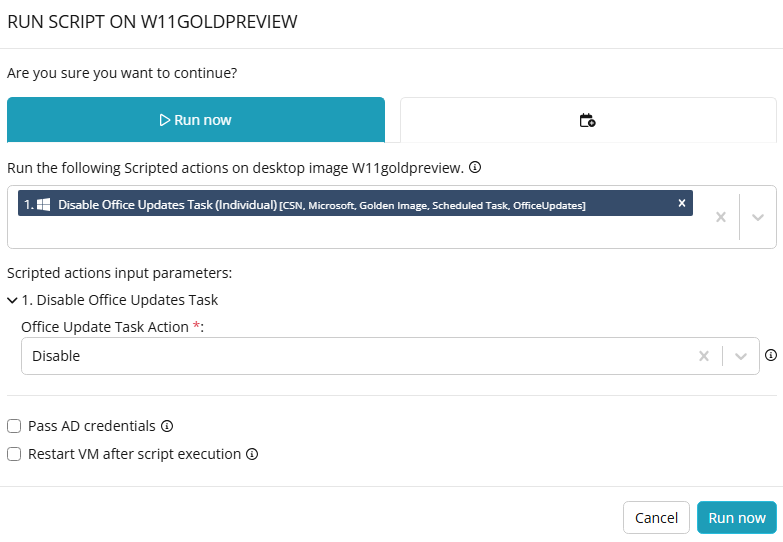

  • Disable Office Updates Task
    Prevent SDXHelper.exe from running in multi-user environments. This script disables, or re-enables, the Office update task on session hosts. Disable Office Updates Task

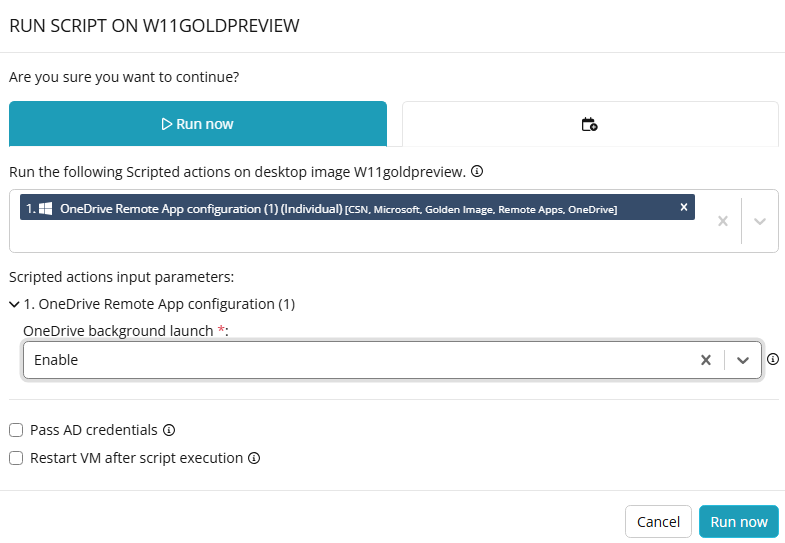

  • OneDrive Remote App Configuration
    Apply the settings required to run OneDrive in AVD Remote App pools (Microsoft documentation). This script also supports reverting the changes. OneDrive Remote App Configuration

Running My Scripts Independently of Nerdio

If you need to test or apply these scripts on a Windows VM without connecting to Nerdio Manager, you can execute them directly. This method is handy for quick troubleshooting or one-off tasks:

  1. Download the desired .ps1 file from the GitHub repo to your local machine.
  2. Open PowerShell as an Administrator.
  3. Bypass the execution policy and run the script. For example, to hide drives “C” and “D”:
Set-ExecutionPolicy Bypass -Scope Process -Force
.\HideDrives.ps1 -Action Hide -DrivesToHide "C,D"

That’s it, your script will run immediately, just as it would within Nerdio’s framework.

How to Collaborate

I’ll keep this repo updated as new requests and use cases come up. I’m also working on integrating my scripts into the official Nerdio repository via this pull request. If you want to contribute:

Conclusion

Nerdio Scripted Actions, especially Windows Scripts, can significantly streamline your AVD deployments by automating everything from app installation to configuration tweaks. Whether you’re customizing golden images, automating host pool events, or running ad-hoc maintenance, these scripts give you the flexibility and control you need. I hope you find my repository helpful, and I’m eager to see what you build with it. Feel free to dive in, suggest enhancements, or share your own scripts!

Links Used in This Article

Name URL
AVD Accelerator https://github.com/Azure/avdaccelerator
Nerdio https://getnerdio.com/
Hydra https://www.itprocloud.com/Hydra/
Scripted Actions Overview https://nmehelp.getnerdio.com/hc/en-us/articles/26124327585421-Scripted-Actions-Overview
Windows Scripts https://nmehelp.getnerdio.com/hc/en-us/articles/26124334667149-Scripted-Actions-for-Windows-Scripts
nerdio-scripted-actions https://github.com/schmittnieto/nerdio-scripted-actions
NMW Scripted Actions https://github.com/Get-Nerdio/NMW/tree/main/scripted-actions
Install language packs.ps1 https://github.com/Get-Nerdio/NMW/blob/main/scripted-actions/custom-image-template-scripts/Install%20language%20packs.ps1
RDS-Templates https://github.com/Azure/RDS-Templates/tree/master/CustomImageTemplateScripts/CustomImageTemplateScripts_2024-03-27
InstallLanguagePacks.ps1 (RDS-Templates) https://github.com/Azure/RDS-Templates/blob/master/CustomImageTemplateScripts/CustomImageTemplateScripts_2024-03-27/InstallLanguagePacks.ps1
Microsoft documentation https://learn.microsoft.com/azure/virtual-desktop/onedrive-remoteapp
Pull request https://github.com/Get-Nerdio/NMW/pull/40
Issues https://github.com/schmittnieto/nerdio-scripted-actions/issues
